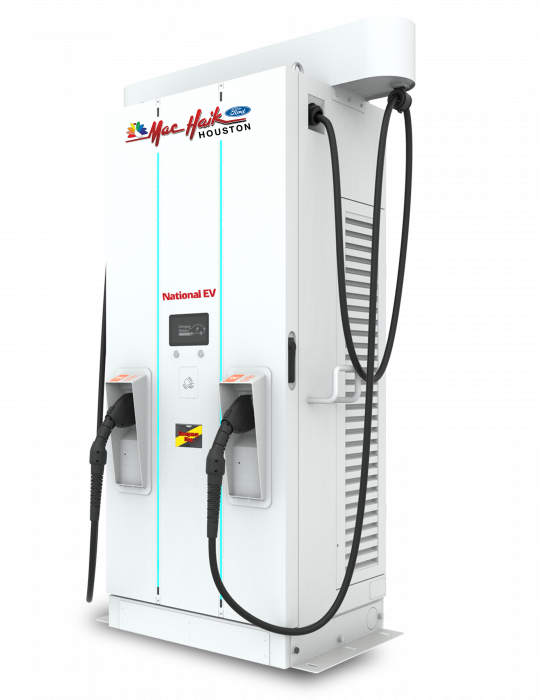

Level 3 Free Standing DC Charger
Our DS Series is an advanced EV charger supporting CCS, and GB/T standards for simultaneous 2 DC charging sessions. Operate seamlessly in network or standalone mode with user authentication. Optional cable management accessories add convenience, and smart charging ensures efficiency above 94%. Customize your experience via the user-friendly 7-inch LCD screen.
Input Rating: 3Φ_480Vac (+10%, -15%)
Input Current: 3P+N+PE (Wye configuration), TN/TT
Max. Input Current: DC System:3Φ274A
Frequency: 50Hz/60Hz
Power Factor: >0.99
Efficiency: >94%, at Optimize V/I Point
Output Voltage Range: UL : CCS1:150~950Vdc CHAdeMO:150~500Vdc
Max. Output Current: CHAdeMO/CCS1:120A@500Vdc CCS1:200A@900Vdc, optional 300A
Max. Output Power: DC 180kW
Voltage Accuracy: ±2%
Current Accuracy: ±2%
Certification: UL2202, UL2231FCC Part 15 subpart BANSI C63.4 ; ICES-003
Charging Interface: CHAdeMO V1.2 DIN 70121 ISO15118 GB/T 27930
Our EV charging solution includes a mobile app with a user interface, along with central office and cloud-based platforms for management, payment, and monitoring.
Mobile App: Allows users to easily locate, schedule, and monitor charging sessions.
HMI Interface: Provides interactive charging instructions and supports diverse payments at stations.
Remote Monitoring: Lets operators remotely check charger status, perform updates, and conduct maintenance.
Data Analysis: Facilitates the collection and analysis of charging behavior and battery usage data, promoting collaboration with automakers.
Advertisement Broadcasting: Operators can generate revenue by broadcasting multimedia advertisements on the charging stations.
Video Cameras for Monitoring: Installation of video cameras supports remote monitoring and community crime prevention initiatives.
