Level 3 Standalone DC Fast Charger

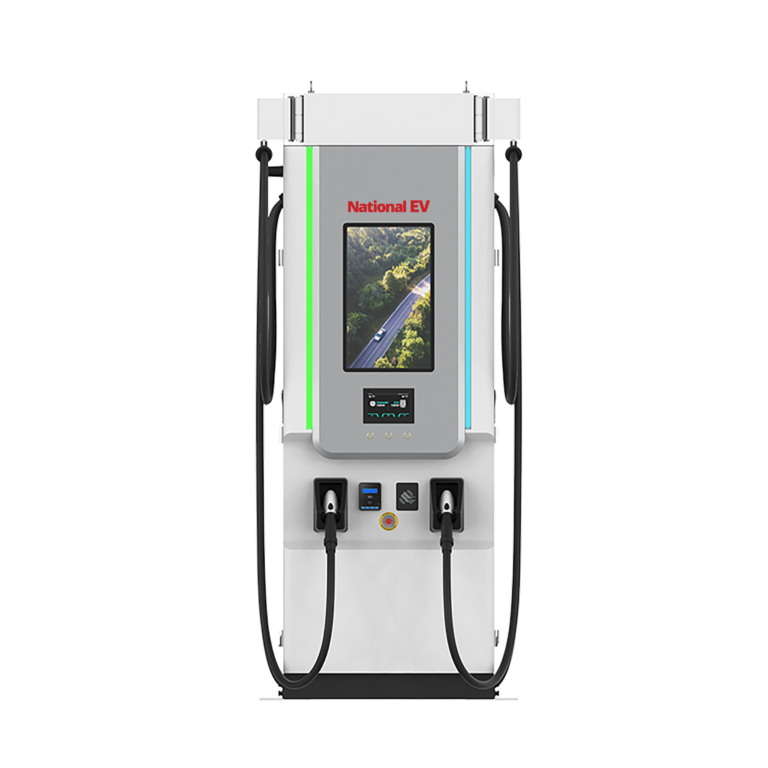

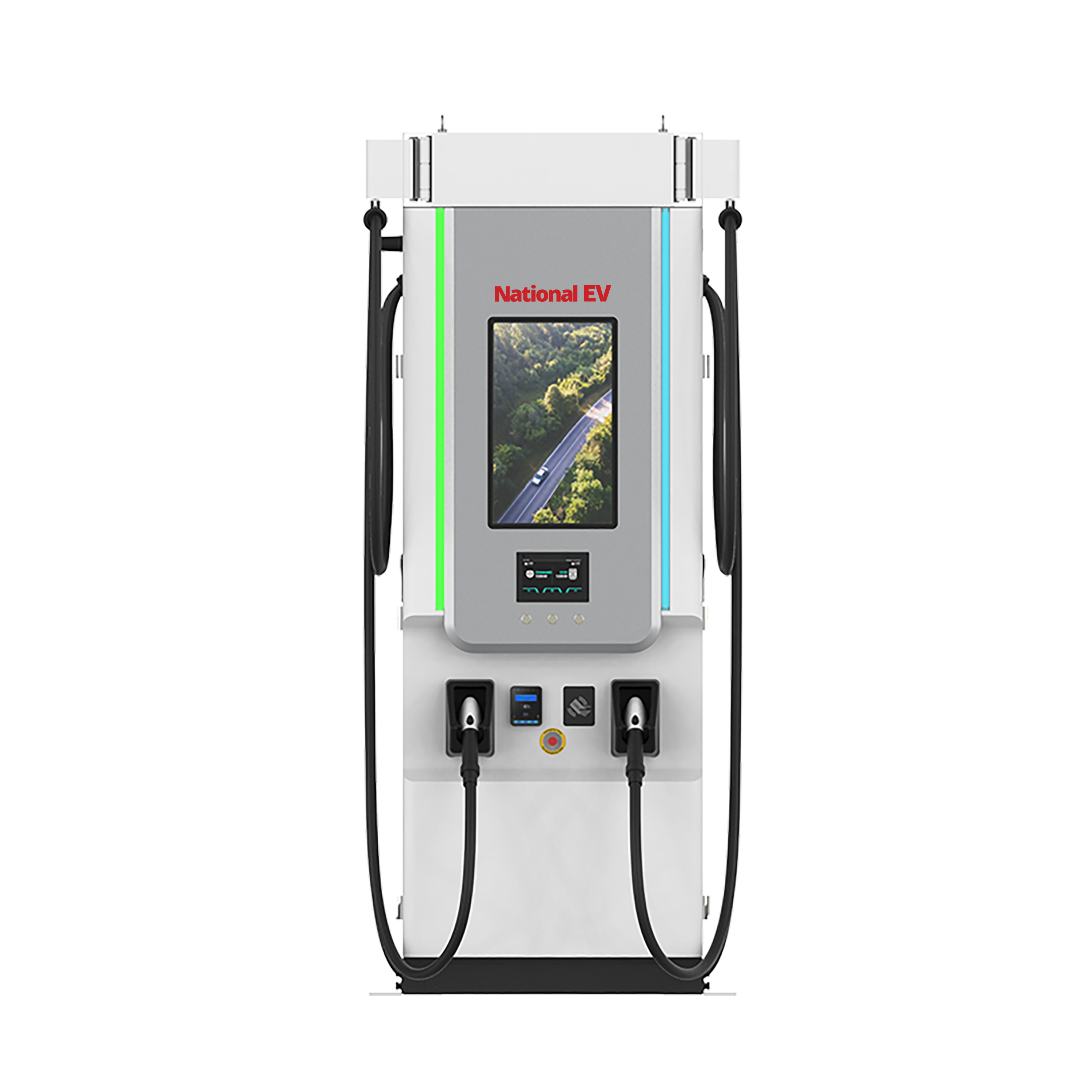

Our DQ Series 480kW Level 3 DC fast charger features dual screens for dynamic charging. Experience faster ROI with up to 480kW/500A per output and versatile connectivity via Ethernet, WiFi, and 3G/4G. This customizable charger ensures easy installation and maintenance, featuring dual 21.5″ media displays and 7″ touch screens with a user-friendly interface, enhancing your charging experience.
Input Rating: 480Vac (±10%)
Input Current: 3P+N+PE (Wye configuration), TN/TT
Current at nom. Voltage per phase: 627A
Frequency: 50Hz/60Hz
Power Factor: >0.99
Efficiency: >94%, at Optimize V/I Point
Output Voltage Range: CCS1:150~950Vdc CHAdeMO:150~500Vdc
Max. Output Current: Liquid-Cooled 500A @150~950Vdc Air-Cooled 300A w/Boost Mode up to 500A @150V~950V
Max. Output Power: DC 360 kW
Voltage Accuracy: ±2%
Current Accuracy: ±2%
Meter: N.A
Charging Interface: CCS DIN70121 (ISO15118) CHAdeMO V1.2
Our EV charging solution includes a mobile app with a user interface, along with central office and cloud-based platforms for management, payment, and monitoring.
Mobile App: Allows users to easily locate, schedule, and monitor charging sessions.
HMI Interface: Provides interactive charging instructions and supports diverse payments at stations.
Remote Monitoring: Lets operators remotely check charger status, perform updates, and conduct maintenance.
Data Analysis: Facilitates the collection and analysis of charging behavior and battery usage data, promoting collaboration with automakers.
Advertisement Broadcasting: Operators can generate revenue by broadcasting multimedia advertisements on the charging stations.
Video Cameras for Monitoring: Installation of video cameras supports remote monitoring and community crime prevention initiatives.
